Super-Edge™
Low Cost Auger Repair Flighting
Welcome toExpress Flighting Supply
A Leading Manufacturer of SUPER-EDGE™ HIGH PERFORMANCE Auger Repair Flighting
- REINFORCED AGAINST WEAR FOR UNMATCHED DURABILITY
- INCLINED BLADE BOOSTS AUGER OUTPUT
- FAST SAME-DAY SHIPMENT FROM MASSIVE INVENTORY
- DIMENSIONALLY ACCURATE FOR EASY MOUNTING
Competitively priced Super-Edge™ replacement flighting ensures the most cost-effective, longest-lasting auger repair/upgrade. Instant availability, economy and an unrivalled wear resistance have made Super-Edge™ the trusted first choice of farmers and repair shops nationwide.
Rapid response, a friendly and personal service and an unrivalled quality product, competively priced ensures customer satisfaction every time!
The Super-Edge™ Advantage

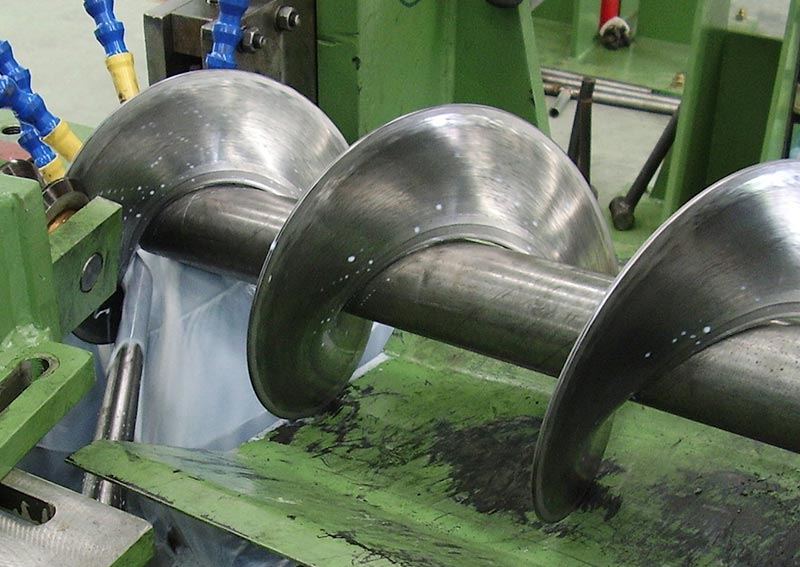

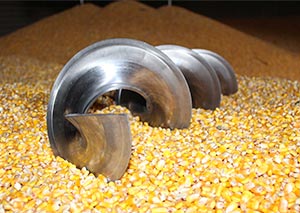

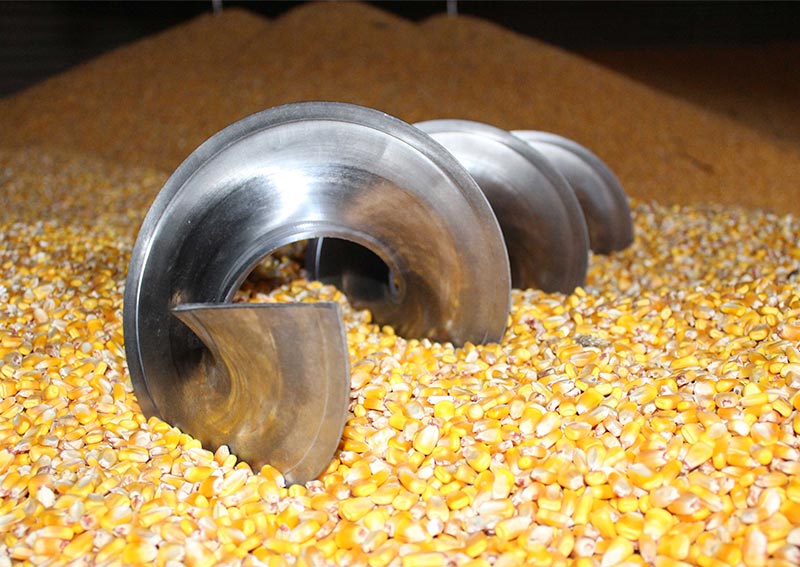

Produced by our unique cold-rolling process, Super-Edge™ flighting is recognized as the best solution for all auger repairs. Manufactured in prime carbon steel, this flighting gains in hardness from cold rolling and the wide band of thickened steel along the outer edge gives Super-Edge™ an unrivalled strength and wear resistance.
The edge-reinforcing band adds a minimum of 30% and up to 50% thickness of steel by comparison with conventional helicoid flighting. This directly combats auger wear and maintains maximum output over the auger’s greatly extended working life. With conventional flighting, wear causes the flighting to reduce in diameter with a corresponding fall in output.
Importantly, Super-Edge™ flighting is directly interchangeable with conventional helicoid flighting – there is no increase in weight, no increase in power requirement, no reduction auger speed and no cost disadvantage.
The precise dimensional accuracy makes mounting on to the central tube or pipe a simple procedure which minimizes cost and down-time. Toughness and solid reliability over many years have made Super-Edge™ flighting the industry favourite and market leader.
- 1/8"
- 3/16"
- 1/4"
- 5/16"
- 3/8"
- 7/16"
- Standard Pitch - where Pitch dimension is equal to Outer diameter dimension
- Short Pitch - where Pitch dimension is less than Outer diameter dimension
- Long Pitch - where Pitch dimension is greater than Outer diameter dimension
- Left Handed
- Right Handed
Immediate From Stock Mid-West Warehouse Locations
Our Illinois and Nebraska warehouses carry over 1,250 different sizes and types of flighting in various thicknesses to repair or upgrade worn flighting in combines, grain augers and all general farm equipment. Same day dispatch in 5 foot lengths by UPS/other carrier and in 10 foot lengths by truck line.

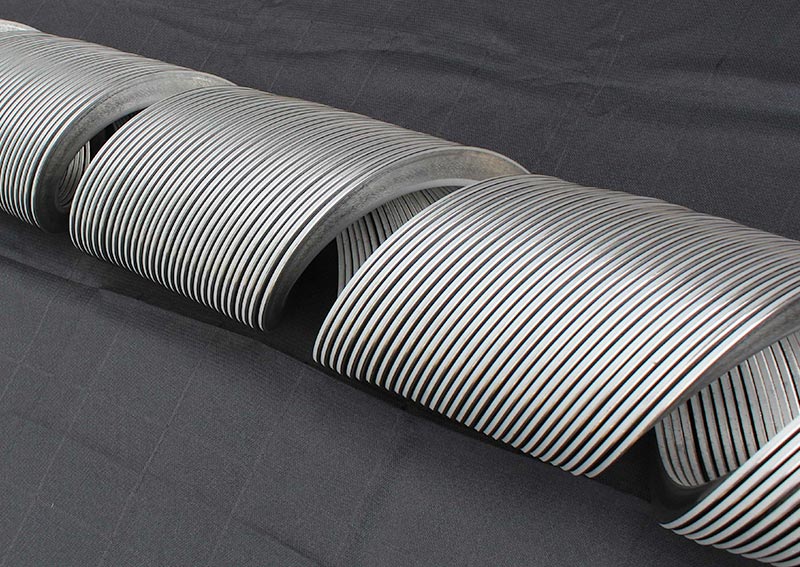

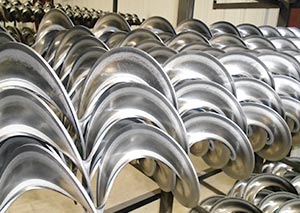

Conventional Helicoid Flighting
- 14 "state-of-the art" cold rolling mills
- highly rigid, wear-resistant flighting
- manufactured from prime grade Carbon steel
- work hardened, tough & smooth surface finish
- superlative durability and output
- production method ensures total control and dimensional accuracy
Our Conventional helicoid flighting is cold rolled on advanced rolling mills to a high standard of quality and dimensional accuracy to facilitate easy mounting. It provides a bright, clean surface finish. While our Super-Edge™ flighting is normally the preferred option for carbon steel flighting, stainless steel flighting is supplied in the conventional flighting format.

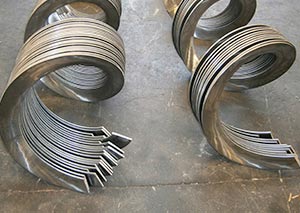

Ribbon Helicoid Flighting

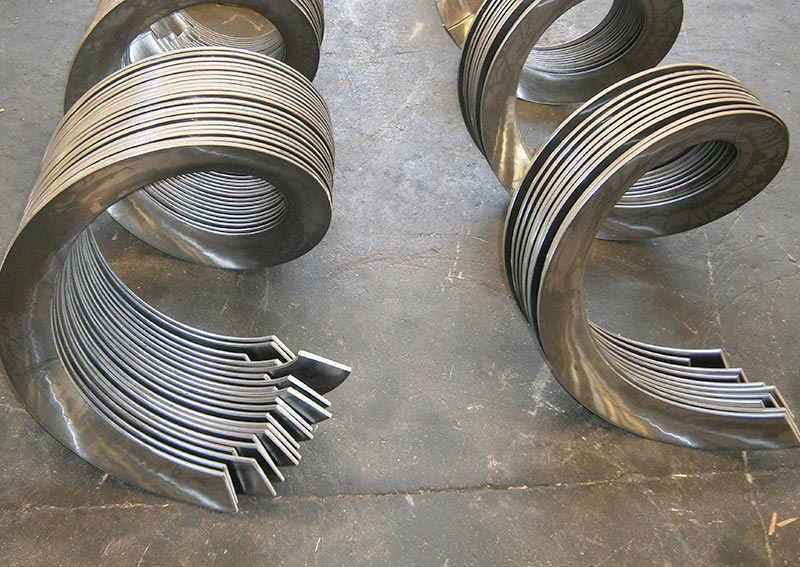

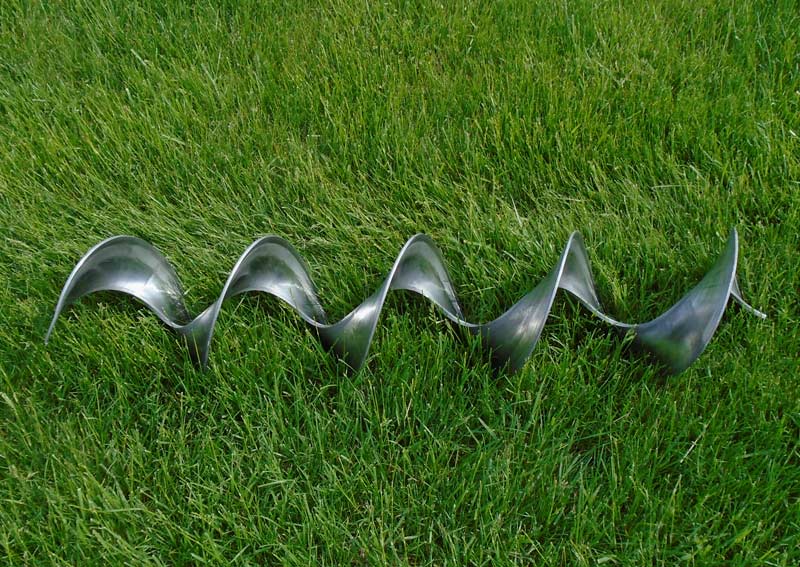

Ribbon Helicoid Flighting is where a narrow strip is used to produce a large inner diameter and can be manufactured as a reinforced edge when welded to Conventional Helicoid Flighting.
- 1/8"
- 3/16"
- 1/4"
- 5/16"
- 3/8"
- 7/16"
- Standard Pitch - where Pitch dimension is equal to Outer diameter dimension
- Short Pitch - where Pitch dimension is less than Outer diameter dimension
- Long Pitch - where Pitch dimension is greater than Outer diameter dimension
- Left Handed
- Right Handed
Immediate From Stock Mid-West Warehouse Locations
Our Illinois and Nebraska warehouses carry over 1,250 different sizes and types of flighting in various thicknesses to repair or upgrade worn flighting in combines, grain augers and all general farm equipment. Same day dispatch in 5 foot lengths by UPS/other carrier and in 10 foot lengths by truck line.

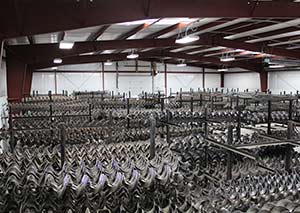

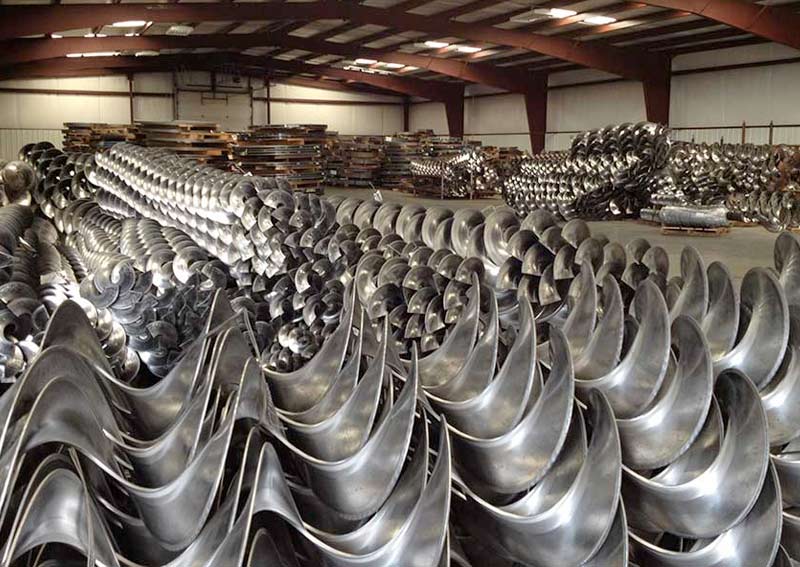

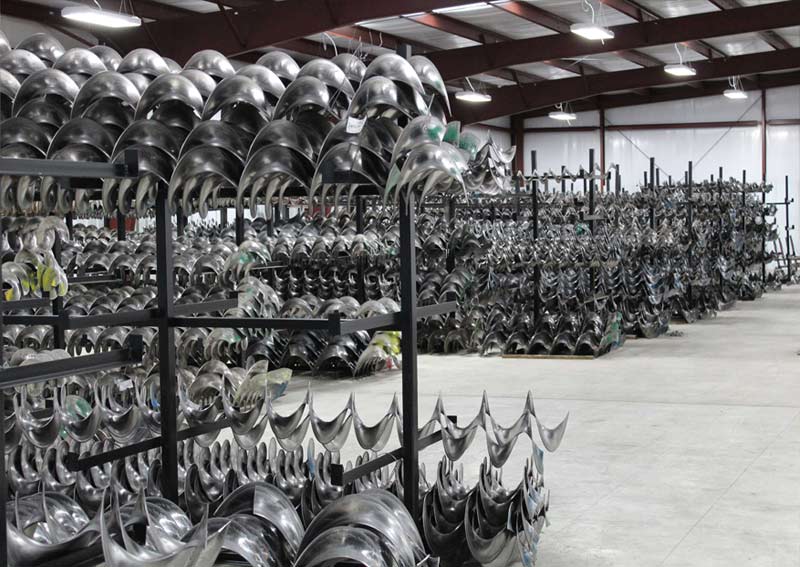

Warehouse Inventory
1,250 Sizes in Stock for Same–Day Shipping
OUTER DIAMETERS FROM 2" to 30"
THICKNESSES FROM 10 GAUGE TO 7/16"
Shipment:
5' lengths by parcel service, 10' lengths by truckline.
Flighting Options:
Left hand or Right hand, Standard Pitch (Pitch equals Outer Diameter)
Short Pitch (Pitch less than Outer Diameter), Long Pitch (Pitch exceeds Outer Diameter)

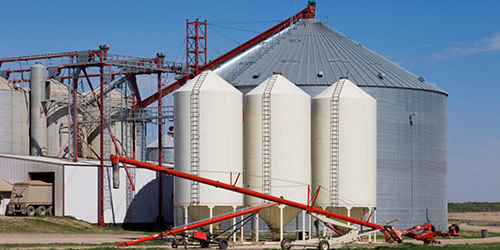

SUPER-EDGE™ LONG-LASTING UPGRADE FOR
COMBINES, TRANSPORT AUGERS, GRAIN DRIERS, GRAIN CARTS,
FEED MIXERS, POSTHOLE DIGGERS, CONVEYOR SYSTEMS, ETC.
Contact Us for the ultimate, low cost auger upgrade.
Need Help Measuring?

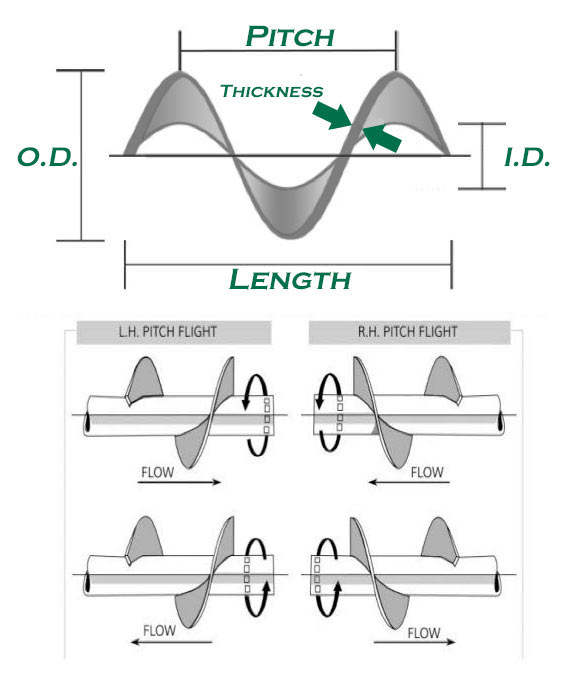

Measuring Flighting
Pitch:
Pitch is the distance between each section measured at the outer edge parallel with the shaft.
Outside Diameter (OD):
This is the vertical distance from upper to lower outer edges of the flighting.
Inside Diameter (ID):
This is the hole size in the flight into which the center tube or shaft fits.
Thickness:
This dimension is measured at the shaft at the thickest part of the flight.
Length:
This is the length per piece.
Quantity:
This is the total number of pieces needed.
